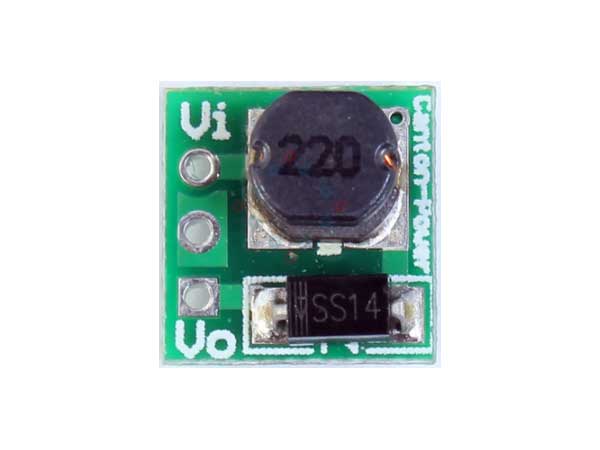

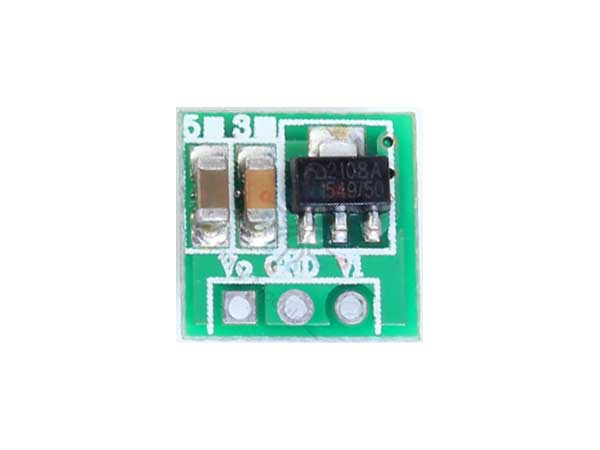

Ìîäóëü ïèòàíèÿ ïîâûøàþùèé 1V 1.2V 1.5V 1.8V 2.5V 3V to DC 3.3V
Ìîäóëü ïèòàíèÿ ïîâûøàþùèé 1V 1.2V 1.5V 1.8V 2.5V 3V to DC 3.3V
Ìîäóëü ïèòàíèÿ ïîâûøàþùèé 1V 1.2V 1.5V 1.8V 2.5V 3V to DC 3.3V
DC-DC Converter

Öåíà: 40.0

â íàëè÷èè
Àðòèêóë: 2108A






Description:

Input voltage 0.8 ~ 3.3V,output 3.3V


Maximum output current: 500 MA

Start Voltage 0.8V, Output Current 10MA

INPUT 1-1.5V,     OUTPUT 3.3V 50-110MA;

INPUT 1.5-2V,      OUTPUT 3.3V 110-160MA;

INPUT 2-3V,         OUTPUT 3.3V 160-400MA;

INPUT above 3V,  OUTPUT 3.3V 400-500MA;

DC-DC Boost module working frequency 150KHZ. efficiency is normal 85% .

2.54mm pin pitch, Arduiuo Breadboard friendly.

Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small)

Weight : about 1.2g( Very light)
